Txawb hnub ci cctv ntauwd nrog ob 460w hnub ci vaj huam sib luag thiab 9600wh gel roj teeb rau kev ruaj ntseg xwm txheej
Hikvision lub koob yees duab nrog mobile hnub ci trailer specification:
Base System
Hom Lub Npe: BIGLUX
Lub npe: Hnub Ci Trailer Ntauwd
Qauv: HS4602G-6M
Khoom siv: Hlau Q235
Hmoov: Sab nraum zoov hom
Dimension: Ntev × Dav × Qhov siab
1900 × 1500 × 1100 (mm) Thauj
2900 × 2500 × 6200 (mm) Ua haujlwm
Qhov hnyav: 800kg / 1764lb
Qhov System Voltage: DC24V
Ua haujlwm kub: -35 degree ~ 50 degree / -31 ℉ ~ 122 ℉
Hnub Ci System
Hnub Ci Vaj Huam Sib Luag: 2 × 460W Monocrystalline Silicon
Roj teeb System
GEL: 4 × 200Ah
Dawb-lub ntsiab
Sib sib zog nqus
Voltage: DC 12V
Series & Parallel: 2 nyob rau hauv series, ces parallel
Lub zog muaj peev xwm: 9600Wh
CCTV System
Box: Square hom
Ntaus: Hloov Transformer 24V-12V
Tswj System
Solar Controller: MPPT, Hybrid 30A
Efficiency: 95 feem pua ntxiv rau
Kev Ntsuas & Kev Tiv Thaiv:
Luv-Circuit
Tshaj dhau
High Voltage
Kub kub
Timer: tsaus ntuj & kaj ntug
Tag Nrho Tshuab: Roj teeb Isolator, Ntaus on-off
Mast System
Lub cev: Aluminium Alloy 6063 Hard Anodized
Hom: Round Telescopic
Qhov siab: 6m / 20ft
Nqe: 4
Caij nplooj ntoos hlav Cable: 2 × Cat6e ntxiv rau 2 × Fais fab mov
Lifting Method: Phau Ntawv Winch
Pom zoo Loading: 5kg ~ 50kg / 11lb ~ 110lb
Windproof: 117km / h / 73 mph
Trailer System
Txuj: US / AU / EU
Tow Hitch: 50mm / 2 '' Pob Hom
Trailer Teeb: 7 Pin
Axle: Ib qho kev ncua
Forklift Qhov: 2
Outrigger: 4 × Phau Ntawv Galvanized
Warranty: 2 xyoos
Khoom siv
Phau ntawv ua haujlwm
Phau Ntawv Qhia Qhov Chaw
Tswj phau ntawv
Allen Wrench
Hex Wrench

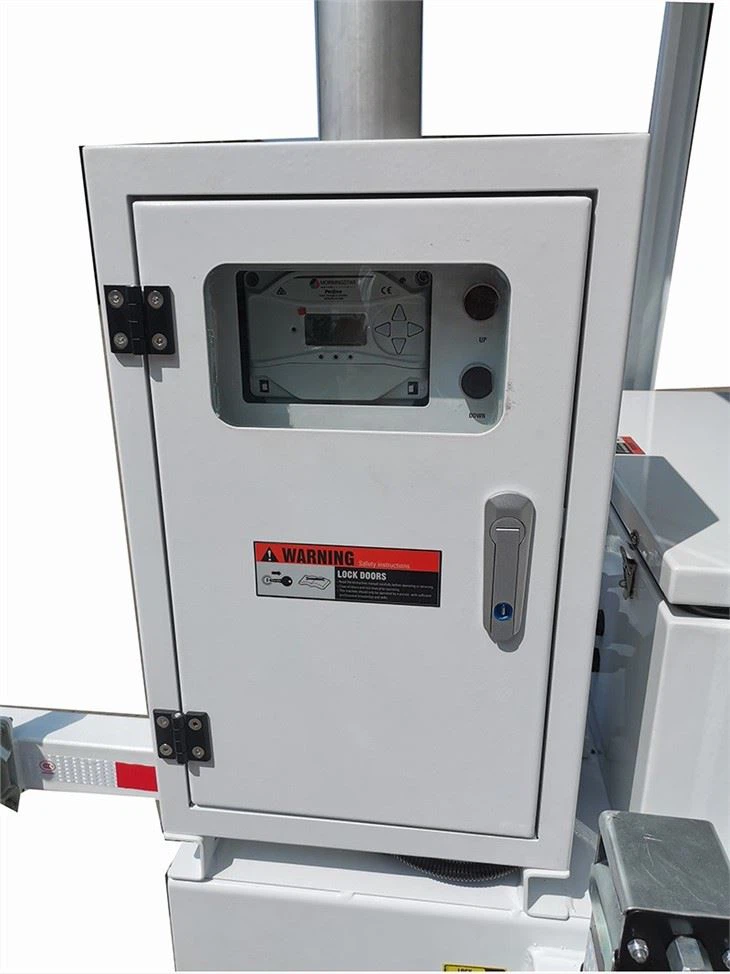

Hikvision lub koob yees duab nrog mobile hnub ci trailer yees duab rau koj siv.
Xov xwm paub
Tshawb xyuas thiab tswj cov khoom siv hluav taws xob, cov kab xa hluav taws xob, thiab kev tiv thaiv hluav taws xob hauv av.
Tshawb xyuas thiab tswj cov khoom siv hluav taws xob thiab cov kab sib txuas.
Xyuas seb lub ntsuas hluav taws xob, hloov pauv thiab fuse ntawm lub hwj chim faib txee puas puas, seb qhov kev sib cuag ntawm txhua yam yog xoob, cua sov thiab kub tshwm sim, seb qhov kev tiv thaiv cov dej xau yog rhiab thiab txhim khu kev qha, seb qhov kev sib cuag ntawm kev sib cuag puas puas.
Kev saib xyuas ntawm lub txee faib khoom feem ntau suav nrog kev tu lub txee faib khoom, kho thiab hloov cov khoom puas thiab cov cuab yeej; Hloov thiab zawm cov hlua txuas ntawm txhua qhov txuas; Cov corroded qhov chaw ntawm lub thawv yuav tsum tau ntxuav nyob rau hauv lub sij hawm thiab coated nrog anti-xeb xim.
Kev tshuaj xyuas tsis tu ncua ntawm cov kab tseem ceeb thiab ceg ntawm cov kab hluav taws xob sib txuas kom tsis txhob xa cov kab, txuas cov kab, kab ntsug, phab ntsa thiab lwm yam tshwm sim; Yuav tsis muaj qhov tshwm sim ntawm kev nyiag hluav taws xob; Txheeb xyuas cov kab tuaj thiab cov neeg siv hluav taws xob ntsuas hluav taws xob tsis tu ncua.
Xyuas thiab tswj cov kev tiv thaiv xob laim hauv av.
(1) Cov txheej txheem hauv av yuav tsum tau kuaj xyuas thiab tswj xyuas ua ntej lub caij ntuj nag xob nag cua txhua xyoo, feem ntau yog xyuas seb qhov txuas yog nruj thiab kev sib cuag zoo, Yog tias muaj qhov txawv txav hauv av ze ntawm lub hauv paus hauv av, khawb av kom pom. xyuas qhov corrosion ntawm qhov chaw zais hauv av yog tias tsim nyog. Yog tias pom muaj teeb meem, nws yuav tsum tau daws raws sijhawm.
(2) Qhov kev tiv thaiv hauv av yuav tsum tau ntsuas ib xyoos ib zaug.
(3) Ua ntej lub caij ntuj nag xob nag cua txhua xyoo, tus neeg ntes yuav tsum tau sim ib zaug siv cov khoom tiv thaiv kev laus.
Kev tshuaj xyuas thiab kev soj ntsuam xyuas qhov system.
Loj photovoltaic fais fab chaw nres tsheb muaj kev saib xyuas zoo tshaj plaws thiab kev kuaj pom. Txhua yam tsis muaj feem cuam tshuam nrog kev ua haujlwm hauv chaw nres tsheb fais fab yuav raug sau tseg los ntawm RS485 kev sib txuas lus thiab tso tawm los ntawm kev coj ua haujlwm.
BIGLUX tsim thiab siv lub zog txuag tshaj plaws thiab yooj yim mobile hnub ci cov khoom lag luam tshaj kaum xyoo, Yog tias koj muaj kev txaus siabHikvision lub koob yees duab nrog mobile hnub ci trailer, thov koj xav tiv tauj peb. Los yognias ntawm nokom muaj kev nkag ncaj qha rau peb lub vev xaib ntawm www.bigluxled.com kom tau txais cov kev daws teeb meem zoo.
